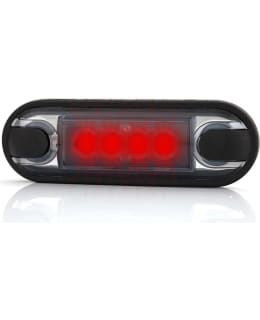

The Monsterlux Horus Black Optic red LED front light for oval flat and tubular surfaces is a red LED front light featuring a dark Black Optic lens. When switched off, the light has a subtle appearance, and when switched on, the red light is clearly visible through the lens. The light is E-approved (ECE R148 Category A, ECE R10) and is fitted to the front of the vehicle to serve as a forward-facing contour marker.
The slim, oval body (84.2 × 27.7 mm) is suitable for both flat surfaces and tubes. Two rubber mounts are included – one for a flat surface and one for a tube – and these also cover the fixing screws. The light is secured with two screws, with a centre-to-centre distance (CC) of 58 mm. A wide 12/24 V operating voltage range, low power consumption and IP68 protection make it suitable for trailers, lorries, vans and work vehicles.
The light features 4 LEDs and a 500 mm open twin-core connection cable (2 × 0.75 mm²), which is connected to the vehicle’s wiring using watertight connectors. The Horus range includes white, yellow and red lights in both round and oval shapes, so you can achieve the same dark look at the front, sides and rear of the vehicle.
Technical specifications
• Product number: 3555-601922
• Make and model: Monsterlux Horus Black Optic red oval slim
• Function: Front position light
• Light colour: Red
• Lens colour: Dark (Black Optic)
• Operating voltage: 12/24 V
• Power: 0.5 W (12 V) / 1 W (24 V)
• Current consumption at 13.7 V: approx. 0.04 A
• LEDs: 4 x LED
• Road-approved: Yes
• Approvals: ECE R148 (Category A), ECE R10 (EMC)
• Approval number: E9*148R00/05*22959*00
• IP rating: IP68
• Connection: 2-pin open-ended cable, 2 × 0.75 mm²
• Cable length: 500 mm
• Shape: Oval (slim)
• Dimensions: 84.2 × 27.7 mm (Length|Height), depth 11.0 mm / 15.2 mm (surface/pipe mounting)
• Mounting spacing: CC 58 mm
• Mounting: Surface and pipe mounting, 2 rubber pads included
• Operating temperature: -30 – +50 °C
