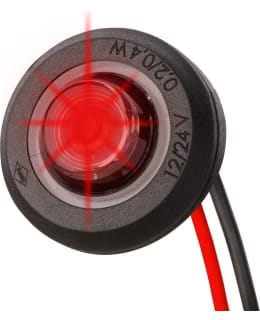

The Monsterlux Horus Black Optic red LED side marker light for round tubular surfaces is a red LED rear side marker light featuring a dark Black Optic lens. When switched off, the light has a discreet appearance, and when switched on, the red light is clearly visible through the lens. The light is E-approved (ECE R148 category R1, ECE R10) and is fitted to the rear of the vehicle to serve as a rear-facing contour marker.
The round Ø 28 mm body is designed to fit the curved surface of a 60 mm tube, making the light suitable for use on, for example, tube arches, light bars and bumper tubes. The light is fitted to a Ø 19 mm hole drilled into the tube. A wide 12/24 V operating voltage range, low power consumption and IP68 protection make it suitable for trailers, lorries, vans and work vehicles.
The light has 1 LED and a 500 mm open twin-core connection cable (2 × 0.75 mm²), which is connected to the vehicle’s wiring using watertight connectors. Remove any burrs from the drilled hole to prevent the cable from being damaged during the feed-through. The Horus range includes white, yellow and red lights in both round and oval shapes, giving the front, sides and rear of the vehicle a consistent, dark look.
Technical specifications
• Product number: 3555-601930
• Make and model: Monsterlux Horus Black Optic red, round, surface-mounted
• Function: Rear position light
• Light colour: Red
• Lens colour: Dark (Black Optic)
• Operating voltage: 12/24 V
• Power: 0.2 W (12 V) / 0.4 W (24 V)
• Current consumption at 13.7 V: approx. 0.02 A
• LEDs: 1 x LED
• Road-approved: Yes
• Approvals: ECE R148 (category R1), ECE R10 (EMC)
• IP rating: IP68
• Connection: 2-pin open-ended cable, 2 × 0.75 mm²
• Cable length: 500 mm
• Shape: Round
• Dimensions: Ø 28 mm
• Mounting: Pipe surface, pipe diameter 60 mm
• Mounting hole: Ø 19 mm
• Operating temperature: -30 – +50 °C
