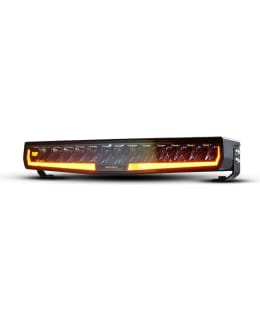

The Monsterlux Dark Digger 20 is a new-generation LED auxiliary light panel that combines a controlled light pattern, a long and wide beam, and a modern design. Vision Select optics offer two different lighting modes: the e-Safe mode, approved for road use, and the highly effective Monster Mode™ off-road mode for demanding conditions.
The panel-style optics produce a wide and pleasant light pattern that also effectively illuminates verges and roadside areas. e-Safe mode utilises separate optics to reduce glare and allows for longer use of the full-beam headlights when meeting oncoming traffic. Monster Mode™ unleashes the headlamp’s full performance for off-road and private road use when maximum range and light output are required. The curved design and striking horn-shaped reflectors complete the headlamp’s appearance. The e-Safe-cut light pattern also performs excellently in snowy and foggy driving conditions. To get the most out of the light and ensure easy installation, we recommend using a ready-made Monsterlux wiring kit with power relays for a single light. The wiring kit allows you to easily switch between power modes and light patterns at the touch of a button, depending on your driving situation and weather conditions. The wiring kit is available under product number 3555-811101.
The smooth-surfaced housing repels dirt, snow and ice, making it easier to keep clean in northern conditions. A wide operating voltage range, clear connections and a variety of mounting options make installation easy in passenger cars, commercial vehicles and machinery.
Technical specifications
- Product number: 3555-201101
- Make and model: Monsterlux Dark Digger 20
- Lumens: 2,800 lm (measured in e-Safe mode) / 16,800 lm (measured in Monster Mode)
- Range at 1 lux: 260 m (e-Safe) / 630 m (Monster Mode)
- Colour temperature: 5,000 K
- Current draw at 13.7 V: 1.8 A (e-Safe) / 13.1 A (Monster Mode)
- Operating voltage: 9–32 V
- Power: 25 W (e-Safe) / 180 W (Monster Mode)
- Reference value: 25 (e-Safe mode)
- Parking lights: Yes – horn-shaped (white and orange)
- Road-legal: Yes, in e-Safe mode (Monster Mode – not for road use)
- Approvals: R10, R149
- IP rating: IP68
- Connector type: 4-pin Deutsch DTP
- Matching connector: Yes
- Cable length: 50 cm
- Shape: Curved panel
- Dimensions: 508 × 60–71 × 73 mm (Width|Height|Depth) ((Height including stand: 80 mm))
- Weight: 2.7 kg
- LEDs: 14 × 15W LEDs
- Light output adjustment (boost): Yes, Monster Mode™ (off-road)
- Mounting: End legs and width-adjustable sliding legs underneath
- Warranty (months): 24 months
