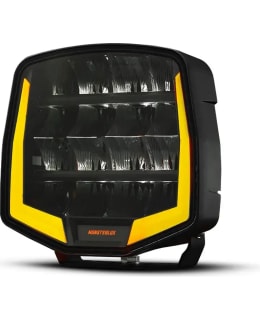

The Monsterlux Dark Digger 10 is a new-generation LED auxiliary light that combines a long beam range, a wide light pattern and a striking design. Vision Select optics offer two modes optimised for different uses: the e-Safe mode, approved for road use, and the highly effective Monster Mode™ off-road mode. The DD10 produces a powerful and balanced light pattern that improves visibility both far ahead and at the edges of the road. e-Safe mode utilises separate optics to reduce glare and allows for longer use of the high beam when meeting oncoming traffic. Monster Mode™ unlocks the headlamp’s full performance for off-road and private road use when maximum range and light output are required. The e-Safe-optimised beam pattern also performs excellently in snowy and foggy driving conditions. To get the most out of the light and ensure easy installation, we recommend using a ready-made Monsterlux wiring kit fitted with power relays for up to three lights. The wiring kit allows you to easily switch between power modes and light patterns at the touch of a button, depending on your driving situation and weather conditions. The wiring kit is available under product number 3555-811103. The smooth-surfaced housing reduces dirt build-up and makes cleaning easier in demanding conditions. White or orange horn covers and a start-up animation complete the modern look. A wide operating voltage range and an under-mount mounting bracket make installation straightforward on a wide range of vehicles.
Technical specifications:
Product number: 3555-901101
Make and model: Monsterlux Dark Digger 10
Lumens: 5,600 lm (measured in e-Safe mode) / 16,800 lm (measured in Monster Mode)
Range at 1 lux: 340 m (measured in e-Safe mode) / 680 m (measured in Monster Mode)
Colour temperature: 5,000 K
Current draw at 13.7 V: 3.68 A (measured in e-Safe mode) / 14.5 A (measured in Monster Mode)
Operating voltage: 9–32 V
Power: 50.4 W (measured in e-Safe mode) / 199 W (measured in Monster Mode)
Reference value: 25 (e-Safe mode)
Parking lights: Yes – horn-shaped (white and orange)
Road-legal: Yes, in e-Safe mode (Monster Mode – not for road use)
Approvals: R10, R149
IP rating: IP68
Connector type: 4-pin Deutsch DTP
Mating connector: Yes
Cable length: 50 cm
Shape: ‘round’
Dimensions: 221 × 208 × 83 mm (123 mm including stand) (Width|Height|Depth) ((Height including stand: 218 mm))
Weight: 2.7 kg
LEDs: 16 x 15W LEDs
Light output adjustment (boost): Yes, Monster Mode™ (off-road)
Mounting: Bottom-mounted stand
Warranty (months): 24 months
