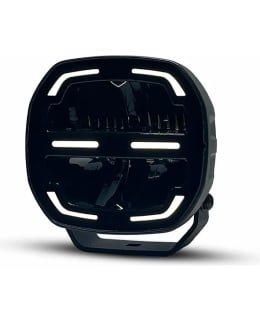

The Monsterlux Core 5 LED auxiliary light with a black body is a compact and powerful auxiliary light that combines a long beam range, a wide light pattern and modern dark optics. The black body and two-colour parking light make it an excellent choice for motorbikes, quad bikes, off-road vehicles, cars and eye-catching custom-built vehicles.
The combined beam pattern ensures a long-range central area and a wider floodlight, which also improves visibility to the sides. A measured light output of 1146 lm and a beam range of 239 m @ 1 lux provide effective additional lighting for demanding driving conditions. The dark-tinted optics give the light a modern and discreet appearance without compromising on light output. A durable cast aluminium body, IP68 protection and effective heat management make this light a reliable choice for heavy-duty, year-round use.
The Monsterlux Core 5 is suitable for a wide range of installations thanks to its compact 5” design. The light can be fitted, for example, to a bumper, roof rack, quad bike or work vehicle. The flat surface at the rear of the housing and two M6 threads also allow multiple lights to be fitted side by side.
Technical specifications
● Product number: 3555-501001B
● Make and model: Monsterlux Core 5 LED auxiliary light with black body
● Lumens: 1146 lm (measured)
● Range at 1 lux: 239 m
● Colour temperature: 5000K
● Current consumption at 13.7V: 0.88 A
● Operating voltage: 9–36 V
● Power: 12 W (measured)
● Reference value: 12.5
● Parking light: Two-colour (white and orange)
● Road-approved: Yes
● Approvals: R149, R10, R148, CE, RoHS
● IP rating: IP68
● Connector type: 4-pin Deutsch DT
● Mating connector: Yes
● Cable length: 50 cm
● Shape: Round 5"
● Dimensions: 114 × 108 × 55 mm (Width|Height|Depth) ((Height including stand: 119 mm))
● Weight: 700 g
● LEDs: 10W × 4 LEDs
● Light output adjustment (boost): No
● Mounting: Bottom-mounted stand
● Warranty (months): 24
