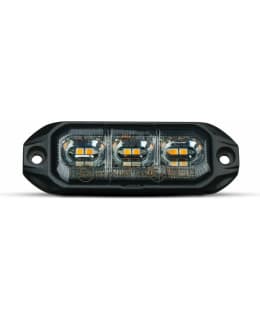

The Monsterlux Alerta 3 LED Flashing Light / Warning Light – Yellow is an effective and highly visible warning light for use on vehicles. Its compact, low-profile design allows for easy installation even in tight spaces on work machines, commercial vehicles, emergency vehicles and for leisure use.
The flashing light offers 9 different flashing patterns for various applications. ECE R65-approved day and night modes, as well as SAE-approved patterns, make the light a versatile option for professional use. Multiple lights can be synchronised with one another, and the light retains the set programme even after the power is switched off. Its robust construction is well suited to continuous use in extremely demanding conditions.
The light can be programmed to the desired flashing pattern prior to permanent installation, in which case only a power and earth cable are required for operation. Clear wiring simplifies installation and commissioning.
Technical specifications
● Product: Monsterlux Alerta 3 LED Strobes / Warning Light – Yellow
● Light colour: Yellow
● LEDs: 3 LEDs
● Flashing patterns: 9
● ECE approval: ECE R65 Class 1 and 2
● SAE approval: Yes
● Synchronisation: Yes
● Dimensions: 85 × 29 × 11 mm (Width|Height|Depth)
● Mounting hole spacing: 74 mm Wires & Functions
● Red: Positive terminal
● Black: Negative terminal
● Yellow: Flashing pattern change
● White: Synchronisation Flashing patterns
1: Single flash, ECE R65 Class 2 (day) – 125 FPM
2: Single flash, ECE R65 Class 1 (night) – 125 FPM
3: Single flash, SAE California Title 13 – 75 FPM
4: Double flash – 125 FPM
5: Series of four flashes – 125 FPM
6: Combination: single / three flashes
7: Combination: single / quintuple flash
8: Stroboscope – 600 FPM
9: Steady light
