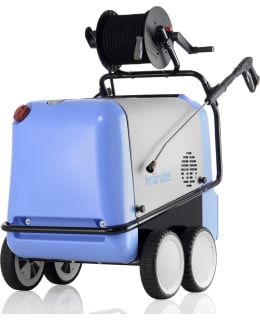

Kränzle’s new Therm 1600-RP hot water pressure washer with D12 quick coupling for serious professional use.
Maximum working pressure of 150 bar (overpressure 170 bar), flow rate of 26.7 l/min.
400 V long-life, low-speed 1400 rpm motor.
20 m hose with hose reel.
Starlet D12 quick-release handle.
Flat jet nozzle.
Detergent suction.
Integrated 12 l water tank to stabilize pressure fluctuations.
Large, sturdy wheels with a parking brake.
The washer is equipped with a high-quality Kränzle inline pump:
Reliable technology, further convincingly developed: The crankshaft moves the plungers in the inline pump series via the connecting rod. This unique design enables an even greater water flow with significantly higher rinsing power than conventional pumps and ensures impressive features:
Power transmission similar to a car engine, with a robust crankshaft, connecting rod, and plungers
Extremely long service life
Integrated discharge valve
Full-stop system with delayed motor shutdown
Features:
D12 quick coupling
Kränzle inline pump
Full-stop system with delayed motor shutdown
Safety switch
Pressure regulation
Detergent suction
Parking brake
Direct suction: Suction height 2.5 m
Water tank: capacity 12 l
Hot Water Features:
Digital thermostat
Flow monitor
Burner preheating
Optical flame monitoring
Overheat protection (exhaust gas temperature over 260 °C)
Burner shutdown when heating oil runs out
Operating hour counter
Fuel tank: 35 l
Technical Specifications:
Working pressure: 70-150 bar / 7-15 MPa
Water flow: 26.7 l/min / 1600 l/h
Maximum allowable overpressure: 170 bar / 17 MPa
Motor speed: 1400 rpm
Connection: 400V 3 ~ 50 Hz 14.3 A
Power consumption: 8.0 kW / Power output: 6.3 kW
Power cable: 7.5 m
Plug: CEE 32A
Dimensions (L x W x H): 1050 x 800 x 1300 mm
Weight: 218 kg
Hot Water Technical Data:
Hot water output: 12-80 °C
Steam level: 140 °C
Heating oil consumption / Maximum heating power: 7.7 kg/h / 9.2 l/h
Heating oil consumption ΔT 45°: 5.6 kg/h / 6.6 l/h
Heating power: 84 kW
Standard Accessories:
20 m pressure hose with hose reel DN8 K443812
High-pressure gun Starlet K123272
Flat jet nozzle, size 011 K12420-D25011
Water inlet filter K13310
