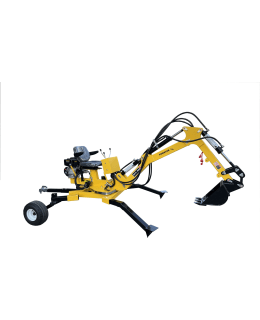

The feature-packed MAX model of the popular Komator TB20 360° excavator, powered by the reliable and efficient Ducar 15 hp petrol engine. The PRO model is equipped with a grab bucket and two separate standard buckets; a 600 mm lip bucket and a 400 mm bucket with teeth. The model also has connections for boom-mounted hydraulic attachments, such as a tiller and forklift. The machine has a fully rotatable 360-degree design, which allows for agile and efficient work on a wide range of tillage jobs.
The Komator TB20G MAX ATV excavator has a maximum digging depth of 2.10 metres and a digging radius of 2.80 metres. The unit can be moved by ATV, tractors or other vehicles with a 50 mm hitch. When moving the machine, the support legs are turned to a horizontal position and secured to the rear during operation. The additional brackets included in the PRO model allow the axle width to be reduced to 150 cm for easier trailer transport.
The machine is supplied with a boom lift with two buckets and is available with a wide range of versatile accessories such as various buckets, earth auger, rotavator and hydraulic hammer.
Technical specifications:- Weight: 570 kg
- Power: 15 hp petrol engine (DUCAR, traction start)
- Maximum digging depth: 2.1 m
- Maximum digging radius: 2.8 m
- Maximum digging height: 2.5 m
- Maximum loading height: 1.2 m
- Leg width: 1.8 m
- Turn radius: 360 degrees
- Bucket turning angle: 160 degrees
- Bucket width: 600 mm
- Width of bucket: 400 mm
- Axis spacing in transport position: 1500 mm
- Dimensions: 2240 x 1000 x 850 mm
- Warranty: 12 months
