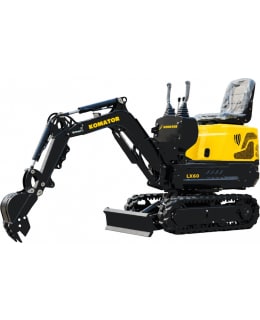

The Komator LX60 is a lightweight and practical mini excavator for a variety of digging jobs around the garden and property. Supplied with three buckets, a quick coupler and a hydraulic dozer blade as standard, it is suitable for digging drainage and cable trenches, preparing planting areas, and shaping and levelling the ground. At just 690 mm wide, it is particularly useful on sites where space is limited.
Equipped with rubber tracks and weighing 550 kg, the Komator LX60 is well suited to gardens at homes and holiday cottages, landscaping and property maintenance. The rubber tracks help reduce damage to the ground, while the hydraulic dozer blade makes backfilling trenches and levelling straightforward.
The LX60 mini excavator features straightforward controls, a padded seat, a vibration-damping rubber platform and LED work lights. It is powered by a powerful Loncin G300 petrol engine. The boom cylinder is protected, and the fully opening engine cover provides easy access for servicing and maintenance.
Three buckets are included as standard for different tasks: a 20 cm toothed bucket for narrow drainage and cable trenches, a 40 cm toothed bucket for general digging, and a 60 cm smooth-edge bucket for levelling the ground.
Working range:- Maximum digging depth: 1,650 mm
- Maximum digging reach: 2,922 mm
- Maximum digging height: 2,550 mm
- Maximum dumping height: 1,790 mm
Technical specifications:- Engine: Loncin G300, petrol
- Rated power: 6.8 kW at 3,600 rpm
- Maximum travel speed: 2 km/h
- Slew speed: 12 rpm
- Maximum hydraulic flow: 20 l/min
- Maximum auxiliary hydraulic flow: 12 l/min
- Operating pressure: 15.6 MPa / 156 bar
- Hydraulic oil tank capacity: 13 l
Dimensions:- Width: 690 mm
- Length: 1,866 mm
- Height: 1,657 mm
- Operating weight: 550 kg
Additional information:- Standard equipment: 20 cm toothed bucket, 40 cm toothed bucket, 60 cm smooth-edge bucket, quick coupler and hydraulic dozer blade
- LED work lights
- Tilting engine cover
- Warranty: 18 months
- CE marked
