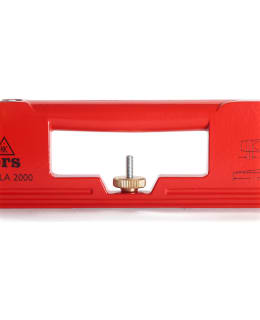

Libella has a cast and milled aluminum frame. Unbreakable bullion vials with excellent transparency and durability. Magnifying glass and self-illuminating reflective surface. With the Libella, you can use rails, extension pieces and a pouring wedge, so that the maximum length of the spirit level is 3100 mm and it can be used to check tilt angles.
Characteristics
- The radius of the spirit level is 1000 mm and the sensitivity is 2 mm/m.
- Tolerance in normal position ±0.25 mm/m, upside down ±0.75 mm/m.
- The dragonfly fluid is a light-moving colored oil mixture that allows the bubble to move very well.
- Resistant to both ultraviolet light and temperature changes.
- Static electricity does not affect the bubble because the liquid is antistatic.
Technical information
- Tolerance upside down +/- 0.75 mm/m
- Length 310 mm
- Libella can be used with extension pieces
- Libella can be used with a pouring wedge
- Sensitivity 2.0 mm/m
Tolerance in normal position +/-0.25 mm/m
