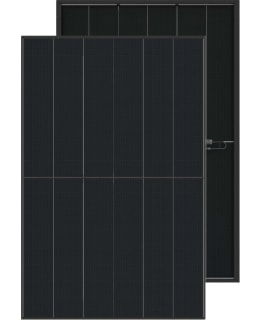

High-quality Brightsolar 530W N-type black solar panel designed for northern conditions.
In this solar panel, the cells are protected by a double-glazed structure. Both the top and bottom of the panel are made of tempered glass instead of the traditional plastic film. The double-glazed structure improves the durability of the panel and helps protect the cells from environmental stress.
The double-glazed structure reduces moisture from entering the panel and improves its resistance to weather, UV radiation and temperature fluctuations. The rigid structure can also reduce mechanical stress on the cells, which reduces the risk of microcracks. This allows the panel to maintain its performance better over a long service life.
The panel is designed to withstand high snow and wind loads, so it is also well suited to the demanding weather conditions of Finland.
Technical data:- Power: 530W
- Open circuit voltage: 40.99V
- System voltage (max): 1500V
- Vmp: 34.80V
- Imp (A): 15.23
- Isc (A): 15.90
- Number of cells: 108
- Cell type: Monocrystalline
- Frame color: Black
- Cables: 4.0mm2 x 1500mm, Junction box IP68
- Connectors: MC4
- Height: 1961mm
- Width: 1134mm
- Depth: 30mm
- Weight: 26kg
- Certified to withstand challenging environmental conditions
- Wind load (2400Pa)
- Snow load per module (5400Pa)
- 25mm hail 23m/s
- Resistant to sand and dust abrasion
- Linear warranty:
- 30 years 87% performance
36 panels on pallet
