Very high-quality metal band saw designed for professional use for cutting profiles, pipes and solid material. Max round 225 mm.

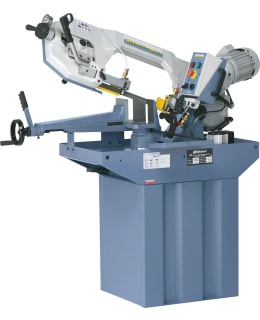

The popular HBS-275 metal band saw is perfectly suited for profiles, pipes, solid materials as well as non-ferrous materials, e.g. plastic. The saw arc turns 90° to 60°, making it easier to cut corners. cooling pump and 2 sawing speeds. The blade guides are mounted on bearings and the guides can be adjusted according to the piece to be sawed. The sawing speed is selected from the switch on the machine's control panel. Now a new reinforced saw arc and a renewed aluminum cooling pump!
Characteristics
- For sawing profiles, pipes, aluminum and solid iron materials
- The saw blade can be turned up to 60° for angled cuts
- The saw arc is continuously lowered using a hydraulic cylinder
- Warp-free, sturdy saw blade made of gray cast iron
- 2 sawing speeds for optimal sawing results
- The sturdy structure guarantees smooth and vibration-free operation
- Automatic on-off switch when the piece is sawn
- Gray cast iron, sturdy vise with quick release
- The ball-bearing blade guide with quick adjustment can be adjusted to the width of the workpiece, guaranteeing optimal results
Standard equipment:
- Saw blade
- Reinforced saw blade
- Stand
- Blade tension gauge
- Material response
- Hydraulic cylinder
- Fast-moving piece press
- Cooling device (aluminum)
- Automatic shutdown
Accessories:
- Blade 2480 × 27 × 0.9 … 10/14 (Product number 212480272)
- Blade 2480 × 27 × 0.9 … 5/8 (Product number 212480271)
- Roller track RB 3 (1.8m) (Product number 07-1460)
- Roller track RB 4 (1m) (Product number 07-1461)
- Roller track RB 7 (2m) (Product number 07-1462)
- Roller track RB 10 (3m) (Product number 07-1463XL)
- Roller track RB 13 (4m) (Product number 07-1464XL)
- Roller trestle LRS (Product number 07-1400)
- Roller trestle RS (Product number 07-1405)
SPECIFICATIONS HBS275
- Sawing capacity round 90° 225 mm
- Sawing capacity square 90° 200 × 200 mm
- Sawing capacity rectangle 90° 245 × 150 mm
- Sawing capacity round 45° 160 mm
- Sawing capacity square 45° 160 × 160 mm
- Sawing capacity round 60° 100 mm
- Sawing capacity square 60° 100 × 100 mm
- Working height 910 mm
- Blade dimensions 2480 × 27 × 0.9 mm
- Sawing speed 45 / 90 m / min
- Cooling pump 100 kW
- Engine power 100% 1.1 kW
- Engine power 40% 1.5 kW
- Voltage 400 V
- Machine dimensions (W x D x H) 1430 × 720 × 1700 mm
- Weight approx. 200 kg
- Product number 04-1695
