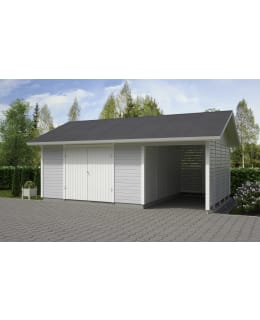

Domestic yard building!
The locations of doors/windows and partitions can be decided during the installation phase, and when ordering, their number can be changed as needed.
Conveniently functions as a yard storage, shed, or yard building or wooden litter box.
Can isolate partially or completely. The building is available with a hipped or gabled roof.
FREIGHT INCLUDES YARD DELIVERY IN MAINLAND FINLAND TO THE SOUTH SIDE OF THE OULU-KAJAANI LINE.
When ordering elsewhere, contact
asiakaspalvelu@karkkainen.com The basic delivery is a pitched roof and includes a building according to the floor plan with:
- wall elements with doors and windows
- roof structure for steel sheet roofing (brush or pedestal)
- corner, eaves and joint boards
- fastening accessories
In addition to the basic delivery, you can choose a variety of different accessories
Product information- Height: 2690 mm
- Length: 6040 mm
- Width: 4240 mm
- Color: Wood finish
- Area: 25.59 m2
- Roof area: 39.85 m2
- Outer liner: UTV 20 x 120
- Frame material: 48 x 98-2 planed
- Floor: Frame 48 x 98, floor board 28x95 mm (Floor as an additional delivery, in the warehouse area)
- Exterior door: 1 piece Double door 1860 x 1730 mm
- Fastening accessories: screws 6x90/4x40/4x60 and nails KS60mm, angle brackets
- Chipboards: 28x95 mm
- Corner and joint boards: 20 x 95 in quantity
- Eaves boards: 20 x 95
- Delivery package size: 2000 x 1000 x 2100 mm
- Weight: 520 kg
Delivery content- Wall elements, outer lining as standard 20×120 UTV wood-ready installed vertically or horizontally. Intermediate boards for end triangles and eaves in bulk.
- Frame 2140 in wide 48×48 3180 in wide 48×70, 4240 in wide 48×98.
- Door with hinges already installed
- 60×60 window and window lining boards already installed in the window elements
- Roof structures
- Ruode boards planed 28x95 for a tin roof
- Corner and lining boards as well as eaves and end boards 20×95 finely sawn
- Fastening accessories
- Clear installation instructions with pictures
ACCESSORIES: Large additional window In addition, one or two windows with a width of 600 mm x height of 1500 mm can be added to the building.
Small additional window In addition, one or two windows with a width of 600 mm x height of 600 mm can be added to the building.
Additional door
In addition to the basic delivery, you can choose one or two doors with a size of width 860 mm x height 1730 mm
Double door A double door with a width of 1860 mm x height of 1720 mm is available as an accessory
Gap element A wall with slots to be ordered instead of the solid wall element in the basic delivery. Total width 1000 mm x height 2000 mm
Convenient for ventilation of a wooden liter
A vertical mountain If desired, the exterior cladding is available upright. Horizontal cladding as standard
Roofing material Available in black felt, black and dark gray sheet Naroma NT20.
The basic delivery includes the roof rods for the tin roof.
When choosing a felt cover, remember to also choose raw pontoon as the underlay.
Rough draft Raw pontoon board 23x95 mm under the felt cover
Floor elements Split floor elements 28x95 mm board and floor joints 48x98 mm
Basic package 400 x 400 mm concrete slabs
Pillar blocks P-240 (one layer)
100 x 100 mm trees cut to size
Felt between the wood and the block
Necessary nailing plates for possible extensions
The customer is always responsible for choosing the right type of foundation, the instructions and the foundation package are intended for a lightweight foundation and its suitability must be verified for each building site separately. The package and instructions are from flat ground upwards, possible frost insulation and drainage etc. must be chosen according to the soil of the construction site and the way the building is used.
Pulpit ceiling In the basic delivery, the building is delivered with a pitched roof. As an additional order, a console ceiling.
+152,00
+36,00
+114,00
+76,00
+875,00
+150,00
+313,00
+72,00
+150,00
+188,00
+519,00
+184,00
+88,00
+630,00
+1318,00
+1318,00
+959,00
+36,90
+186,00
+388,00
