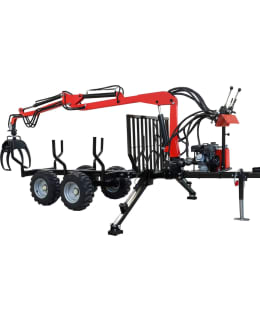

Timcon hydraulic log truck with crane and drive axle. Equipped with high quality, proprietary hydraulics. Delivery includes log truck, hydraulic lift with 180 degree swivel grab and extension boom, support legs, 6 banks and 6.5 HP 4-stroke engine.
The cart is equipped with a hydraulic assist (drive) to improve forward propulsion on soft terrain, snow and slopes and reduce the load on the tow vehicle.
Most commonly used towing an ATV. Supplied packaged in a steel frame.
Product Information:- A universal log truck with high ground clearance and a rigid, fully galvanized, corrosion-resistant frame
- Hydraulinen apuveto kärryn pyörille
- Hydrauliset tukijalat, erittäin leveä tuenta
- Kärryn maksimikantama 2000 kg
- Wheel hitch suitable for 50 mm ball
- With hydraulic system and easy-to-use fork
- Extension boom, 90 degree swivel and tilting grab
- 6 pcs. side booms
- Solid front boom
- Note!Motor and hydraulic oil to be purchased separately!
Specifications:- Motor: Ducar four stroke 6.5 HP with electric start
- Gasoline tank capacity: 4 l
- Hydraulic oil capacity: 12 l
- Max. Max. boom length: 430 cm
- Max. Max. lifting height: 460 cm
- Max. distance between support legs: 250 cm
- Lifting capacity at a distance of 2 m: 500 kg
- Lifting capacity in extreme position: 200 kg
- Ring size: 23 x 8.5-12
- Pump capacity: 2.7 mL/R
- Oil pump working pressure: 16 MPa
- Delivery size: 230 x 120 x 74 cm
- Gross weight: 1050 kg
- Net weight: 950 kg
- One year warranty
Delivered unassembled in a transport frame.
