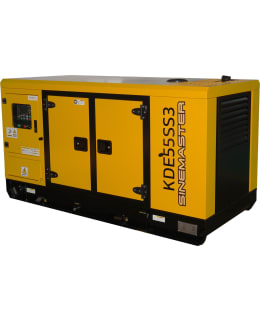

Sinemaster KDE55SS3 power generator

Supersilent power generator with 55 KVA output.

0.0

SINEMASTER KDE55SS3 GENERATOR Main Image

Sinemaster KDE55SS3 power generator

Name: Sinemaster KDE55SS3 power generator
Brand: Sinemaster
SKU: P1694789362447201
Price: 18900 EUR
Availability: InStock

0.0

Supersilent power generator with 55 KVA output.

€18,900.00

or from/ month

Only 1 pc left

Shipping starting from €266.75

Shipped approx. 7.30.2025.

Returns

Free returns for 30 days after purchase

Fast delivery

Fast and versatile delivery options

100% Safe

Safe Finnish online store

Samankaltaisia tuotteita

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

About the product

High quality power generator suitable for professional use, hospitals and public buildings. Compliant with the latest emission standards, the intelligent, electrically-started aggregate is reliable and long-lasting. It also features an hour meter, an oil level gauge and a large fuel tank. The engine has one of the longest life on the market thanks to its low revs of 1500 rpm. The engine life is up to four times longer compared to 3000 rpm rotating alternators.

The alternator is equipped with the latest and smartest SmartGen 4020N control panel on the market and a large 80 Ah battery. Soundproofed steel housing with service hatches. High quality AVR controller with sine wave meeting the high criteria of THD < 3%.

Features:

Saintier power for sensitive electronics
Sinemaster AC generators power even larger electronic devices with cleaner, safer and more stable electricity
./li>
Easy maintenance and installation
A quick service hatch ensures speed and an LED display provides full diagnostic functionality for the unit

Specifications:

Engine: YTO EURO 5 3620cc Water-cooled, four-cylinder direct injection diesel
Number of cylinders: 4
RPM: 1500 rpm
Insertion: 98 x 120 (mm)
Injection ratio: 17.5:1
Voltage: 230 V / 400 V
Frequency: 50 Hz
Control Panel: Digital Display
Power Continuous: 40 kW / 50 kVA
Power Max.44 kW / 55 kVA
Total power @ 1500 rpm: 51 kW
Power factor COS φ: 0.8
Equipped with high quality AVR controller, THD: 1.92%
Outputs 63 A + 32 A 400 V 3-phase: 2 pcs CEE
Outputs 16 A 230 V 1-phase: 1 caravan plug CEE
Vinocity: 400 V 2/3 power, 230 V 1/3 power
Atcurrent continuous: 72,2 A
Electric start: 12 V
Opening switch: Yes
Emergency stop switch: Yes
Circuit breaker: 4P 80 A
Automatic fuses: Yes
Voltage meter: Yes
Fuel tank capacity: 90 L
Fuel pump: mechanical in-line pump
Run time per tankful: 11 h / 100%
Battery: CAMEL Group 80 Ah
Motor oil capacity: 11 L
Noise level (7 m): 69 dB
Protection class: IP23
Fuel consumption: ≤ 235 g/kW.h
Packing dimensions (W x L x H): 228 x 100 x 127 cm
Generator dimensions (W x L x H): 225 x 95 x 125 cm
Centred lifting point for easy transport
Weight: 1180 kg

Accessories: SINEMASTER ATS Automatic starting unit
In the event of a power outage on a controlled network, the ATS senses the voltage drop and sends a signal to the generator, which starts powering the outage within seconds. The ATS monitors throughout the outage and once it has verified that the grid voltage has returned to an acceptable level, the ATS transfers the electrical load back to the grid and shuts down the aggregator. In normal standby mode, 12V power is supplied from the mains via the ATS to the generator starter battery to ensure that it is fully charged.
