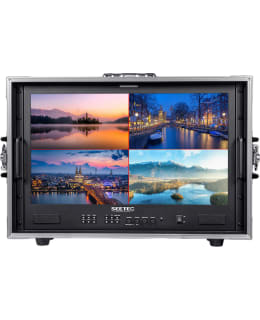

21.5" 3G-SDI/HDMI Broadcast Director monitor Perfect solution for multi-camera serial, surveillance and post-productionSEETEC ATEM215S-CO is a Full HD broadcast handheld monitor equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input connector and RS485, GPI control interface. Adopts Rec.709 color standard, displays vivid images and professional effects. Robust and durable aluminium housing With 3D LUT, waveform, vector scan, histogram, super focus and other great features, all functions can be easily operated and controlled with front panel buttons. The portable aircraft aluminum housing easily withstands even the harshest of location shooting. It is ideal for film and TV crews, broadcast and post-production! The 21.5-inch Full HD LCD ATEM215S-CO uses a 21.5-inch LCD panel, high-resolution 1920x1080, accurate color reproduction, provides a natural and clear picture with 250 cd/㎡ brightness, 1000:1 contrast ratio, 178° wide viewing angle, allows for a clear viewing angle of the screen. Portable Aviation Aluminium Case The ideal choice for shooting. Time and cost are important for shooting teams. This becomes more apparent if the scene changes frequently during the shoot. The ATEM215S-CO offers an aviation aluminum case, it has dustproof, waterproof, high temperature resistance, corrosion resistance and so on. It is suitable for transportation and use in various environments and provides a safer protection for the monitor. Quick disassembly and assembly, no tools required Innovative combined structural design can complete the disassembly and assembly of the screen quickly, and it is easy to use for both indoor and outdoor use. Comfortable Handle Reasonably sized and comfortable to hold, the handle effectively relieves the weight feeling caused by the movement of the device, easy to carry. Beautiful butterfly-shaped clasp Both the links and the front and back covers of the case have beautiful butterfly-shaped clasps, durable and good-looking. Accurate colour reproductionUse Rec.709 colour standard. Accurate colour reproduction is one of the most important indicators for measuring professional displays. The ATEM215S-CO, with built-in 3D-LUT, adopts the professional Rec.709 HD color standard and uses color calibration technology with professional instrument calibration at the factory to ensure consistent color reproduction of each display. Flexible and intuitive button operation When you're busy on set, you need to be able to control your equipment with ease, and the ATEM215S-CO can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, volume, etc. to make shooting easier. The backlight button design makes it easy to distinguish between the current input signal and the hotkeys in use, easy to use even in dimly lit studios or outdoors. 4X3G SDI inputs and OutputPerfect SDI control The ATEM215S-CO displays are the perfect choice for adding SDI control wherever you need it. It features 4x3G-SDI signal inputs and outputs, suitable for multi-camera shooting of crews and simultaneous monitoring of multiple people. In addition, it also features HDMI input, RS485, GPI control interface, to meet a variety of needs. Professional On Set Monitoring ToolsAccurate focus and efficient monitoring The monitor offers a series of professional auxiliary monitoring tools such as waveform, 3D LUT, peak filter, histogram, vector scaler, sound meter, time code, anamorphic mode, etc. All functions are easy to select and use from the menu, you can also set a shortcut or GPI control. Effectively enhance on-location shooting and post-production. 3D LUT, Rereate Film LooksSupport up to 36 custom LUTs to load 3D LUT is a table that allows you to quickly search and print specific color information. By downloading different 3D LUT tables, it can quickly combine colour tones into different colour styles. Built-in 4 DE-log LUTs, you can also download a custom .cube file via USB flash drive (up to 36). HDR controlWhat you see is what you get. Supports HDR (high dynamic range) control for incredible clarity and detail, effectively improving the overall image quality. When HDR is activated, you can select Gamma and Gamut to match Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI. Accurate waveform monitoring Save your budget With built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scopes, histogram, audio phase and level displays and get broadcast accurate waveform monitoring that shows everything you technically need from your video and audio signals. The functions can be unlocked separately, and also support a single key to unlock all scope modes (can be right/left adjustment). The ATEM215S-CO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scope! Gynamic UMDTSL3.1/4.0 protocol The ATEM215S-CO supports the TSL 3.1/4.0 protocol UMD with 0-126 TSL address choices and up to 16 characters. UMD inputs via RS485 port and outputs via RS485 port. The Tally Lights GPI controls the Red Tally and Green Tally, which not only can remind the photographer to enter record mode, but also appreciate the convenience of the near-professional technology of TV recording in your creation. Multiple display modes Meet different surveillance needs The display can be set to full screen mode, picture in picture and quad screen to meet different surveillance needs. In picture-in-picture mode, the size and position of the sub-window can be adjusted. Four-screen mode supports simultaneous display of SDI signal for 4-channel audio meter and 4 time code. 16-channel audio level meters The display can remove audio from SDI and HDMI. Supports selection of any 2-channel audio via the 3.5mm headphone jack. Under SDI audio, it supports up to 16 channels of embedded audio meter display. Under HDMI audio, only 2-channel audio display is supported. Custom Menu Setting The ATEM215S-CO offers 4 groups of custom menu settings that are automatically saved after setup and do not need to be reset the next time you start up, saving you time. Portable sunshade The new extended screen sunshade achieves an ideal visual impression in almost any environment. Suitable for different environments Whether in cold snow or hot desert environments, the ATEM215S-CO is easy to handle. Quad View supports 4x 3G-SDI input. PIP You can adjust the ratio and position of the sub-window. Brightness histogram Brightness histogram is a quantitative tool for checking the brightness of an image. The feature displays the distribution of image brightness as a graph of brightness on the horizontal axis (left: dark, right: bright) and a stack of the number of pixels at each brightness level on the vertical axis. The Peaking Focus Assist Peaking Filter is used to help the camera user get the sharpest possible image. When activated, the built-in processor displays a colored highlight on the screen showing sharp edges. You can change the putline colour between red, green and blue according to the different tone of the subject. False colours The false colour filter is used to help set the camera's exposure. When the camera iris is adjusted, the elements in the image change colour based on luminance or brightness values. This allows the correct exposure to be achieved without the need for expensive, complex external testing equipment. Exposure (zebra) The Exposure function is used to help adjust the exposure in zebra mode. It is considered overexposed and displays moving warning lines for overexposed areas. 1-100IRE adjustable. Check Field Check Field is an auxiliary function for adjusting the camera's color settings. In Check Field mode, you can use red, green, blue or monochrome pixels to create an image, as tone and saturation can be adjusted more quickly and accurately in this environment. Zoom in (4X, 9X, 16X) Zoom in to enlarge the image from 4X, 9X up to 16X for a high quality close-up. Anamorphic mode (1.3x, 2.0x, 2.0x mag, user-defined adjustment: 1.20X~2.00X) Built-in no pinch, 1.3x or 2.0x allows you to use anamorphic lenses or adapters and see the image uncompressed, even when your camera is not pinching. The 2.0× mag mode magnifies the centre of the image so you can check the focus of the scaled image. Pixel to Pixel Allows the filmmaker to check the image from a 1:1 signal source without scaling. This feature is essential for capturing optimal detail. Time Code Displays the time code of the SDI signal. Center mark and security mark Security mark for view search and configuration (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user). You can change the colour of the marker between yellow, cyan, violet, red, green, blue, white and black according to the different shade of the object. TV station playback When you're making TV programmes on location, the amazing clarity of the HD resolution display makes it easy to check focus and view colour consistency across all your cameras and better control the quality of programme output. Tally is included in the screens, so you get a red or green indicator light on the screen and a preview status indicator on the screen itself. GPI control lets you quickly select the function you need, saving time and improving shooting efficiency. Post-production Get a complete overview of your screen The ATEM215S-CO is the perfect solution for all your video viewing needs. All SDI video inputs have loopback and support 2K video format. You can get a real-time overview of all your screens. The perfect monitoring solution The large Full HD display supports 3D LUTs for adjusting and calibrating functions such as colour, HDR, histogram, vector zoom, peak focus, etc., with a positioning sunshade attached so you can also see the display clearly even outdoors. The ATEM215S-CO is the perfect monitor for imaging and post-production. Importantly, you can also do one-touch monitoring of all waves so you know the true quality of incoming video feeds in real time. The ATEM215S-CO is your complete program production monitoring solution. On Set Monitoring for Multi-camera A great choice for the supervisor on crewATEM215S-CO is equipped with 4 3G-SDI inputs and outputs, making it more suitable for professional crew photography. With multiple display modes, the director can not only monitor each frame in real time, but also observe more details on the full screen to better communicate with the photographer in a timely manner. Key features. Multiple interfaces for various needs (4 3G-SDI inputs and outputs, 1 HDMI input, RS485, GPI) Stereo headphone output Functions: Focus Assist (yellow, red, green, blue, white) five color optional highlighting over parts of the focused image) Zebra (70IRE, 80IRE,us,monchrome,us) (90IRE,monchrome, ergray) Nine-frame false color time code security flag (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user) Centre mark matte(16:9, 16:10, 4:3, 1.25, left 3:1:1) right) Parallax (OFF, RGB transition, Y, YUV transition) Vector histogram RGB histogram sound meter HDR 3D-LUT scan mode (Under Scan, Overscan) Video aspect ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, user mode (.1 Anamorphi3X, .1 Anamorphi3X). 1.5X, 2.0X, 2.0X mag) Zoom (4X, 9X, 16X) Stop from pixel Pixel color temperature (6500K, 9300K, user) Display mode (full screen, PIP, quad) Display specifications Model: ATEM215S-CO Screen size: 21.5" IPS Colour depth: 16.7M Resolution: 1920 × 1080 pixels Pixel density: 0.08265 (K) x 0.24975 (V) mm Aspect ratio: 16:20 Ratio:/m²ct. 1000:1 Backlight: LED viewing angle: 89°/89°(L/R) 89°/89°(U/D) Input 4 X 3G-SDI: 3G-SDI (2K support) 1 X HDMI: HDMI (1080P support) 1 X USB and 1080P support) 1 X USB grade and RS485: GPI input 1 X GPI:5: RS485 Output 4 X 3G-SDI: 3G-SDI (support 2K) 1 X RS485: RS485 Audio Audio: Stereo Headphones, Speaker SDI Support Format 720p (60/59.94/50/30/29/25/24/23.98) 10809 (6/509) 1080i (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) 2048x1080i (60/59.94/50) 2048x1080p (60/59.94/50/9) HDMI support 3/5. Format 480i/576i/480p/576p 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) Overall input voltage: DC 12V Power consumption.6.3×511.6.6×511D (mm) (W/O aluminium case) Unit weight: 4.27 kg Outer packaging: pcs 1 Outer packaging Size: 647 315 470 (mm) Gross weight: kg Additional features Built-in multi-camera Delog LUTs User download of 3DLUTs via USB (up to 36) Support for GPI.3 User download of 3DLUTs via USB (up to 36) Support for GPI.3 and control/LTS. IMAGE VIDEO protocol Support TALLY Support 16-channel embedded audio meter display Histogram HDR Focus Assist (red, green, blue three colors with optional highlighting over focused image sections) False colors Zebra (70IRE, 80IRE, 90IRE) Time code display Picture in picture (Adjustable horizontal or vertical sweep mode) (Over sweep) (Over sweep) (1.33X, 1.5X, 2.0X, 2.0X mag) Pixel-Pixel Center Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user) Marker 9, (1:6: Mato9, (1:6:) 1.85:1, 2.35:1) All Waves Parade (RGB Parade, Y, YUV Parade) Image Freeze selectable color temperature presets
