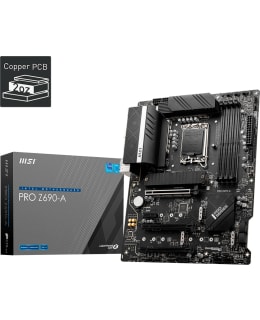

MSI PRO Z690-A - Motherboard - ATX - LGA1700 socket - Z690 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2.5 Gigabit LAN - Onboard graphics (CPU required) - HD Audio (8-channel)
General
• Product type: Motherboard - ATX
• Chipset type: Intel Z690
• CPU base: LGA1700 base
• Maximum number of processors: 1
• Compatible processors: (supports 12th generation Intel Core / Pentium Gold / Celeron)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR5
• Bus Clock: 5000 MHz (OC), 5200 MHz (OC), 5400 MHz (OC), 5600 MHz (OC), 5800 MHz (OC), 5066 MHz (OC), 5333 MHz (OC), 6000 MHz (OC ), 4800 MHz, 6200 MHz (OC), 6400 MHz (OC), 6133 MHz (OC)
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC897
• Compatibility standards: High Definition Audio
LAN
• Network controller: Intel I225-V
• Network connections: 2.5 Gigabit Ethernet
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x1 mode)
• Memory connections: SATA connectors: 6 x SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 - connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 3.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
• RAID features: Intel Smart Response Technology
• Connections: 1 x HDMI, 1 x DisplayPort, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x LAN (2.5Gigabit Ethernet), 1 x PS/2 keyboard / mouse, 1 x USB-C Gen2x2, 1 x audio line-out, 1 x microphone, 1 x audio line-out (center/subwoofer), 1 x audio line-out (rear), 1 x audio line-in, 1 x audio line-out (side surround), 1 x USB 3.2 Gen 2
• Internal connections: 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x USB-C Gen2, 1 x audio
• Power connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
Characteristics
• BIOS features: MSI ClickBIOS 5
• Hardware features: Supports AMD CrossFireX technology, MSI Audio Boost, Debug LED, 6 Layer PCB, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, 14+ 1+1 Phase Power Design, Windows 11 Compatible, Surface Mount Technology (SMT)
Change
• Included accessories: I/O back panel, 1 x M.2 screw, M.2 plug, Wi-Fi antenna, 2 M.2 brackets
• Included cables: 2 x SATA cable
• Included software: Drivers and utilities
• Width: 30.5 cm
• Depth: 24.4 cm
