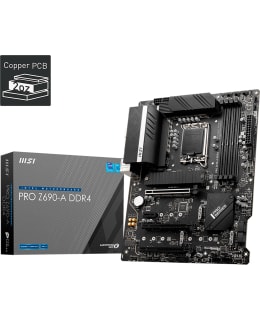

MSI PRO Z690-A DDR4 - Motherboard - ATX - LGA1700 - Z690 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2.5 Gigabit LAN - Onboard graphics (CPU required) - HD Audio (8-channel)
General
• Product type: Motherboard - ATX
• Chipset type: Intel Z690
• CPU base: LGA1700
• Maximum number of processors: 1
• Compatible processors: (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR4
• Bus Clock: 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (OC), 4400 MHz (OC), 4800 MHz (OC), 3200 MHz, 5200 MHz (OC)
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC897
• Compatibility standards: High Definition Audio
LAN
• Network controller: Intel I225-V
• Network connections: 2.5 Gigabit Ethernet
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x1 mode)
• Memory connections: SATA connectors: 6 x SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 - connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 3.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
• RAID features: Intel Smart Response Technology
• Connections: 1 x HDMI, 1 x DisplayPort, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x LAN (2.5Gigabit Ethernet), 1 x PS/2 keyboard / mouse, 1 x USB-C Gen2x2, 1 x audio line-out, 1 x microphone, 1 x audio line-out (center/subwoofer), 1 x audio line-out (rear), 1 x audio line-in, 1 x audio line-out (side surround), 1 x USB 3.2 Gen 2
• Internal connections: 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x USB-C Gen2, 1 x audio
• Power connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
Characteristics
• Hardware features: Supports AMD CrossFireX technology, Debug LED, 6 Layer PCB, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, 14+1+1 Phase Power Design, Windows 11 compatible
Change
• Included accessories: I/O back panel, Wi-Fi antenna, m.2 screw / standoff sets, 2 x M.2 clips
• Included cables: 2 x SATA cable
• Included software: Drivers and utilities
• Width: 30.5 cm
• Depth: 24.4 cm
