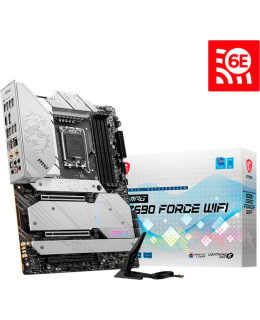

MSI MPG Z690 FORCE WIFI - Motherboard - ATX - LGA1700 - Z690 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - Onboard graphics (CPU required) - HD Audio (8-channel)
General
• Product type: Motherboard - ATX
• Chipset type: Intel Z690
• CPU base: LGA1700
• Maximum number of processors: 1
• Compatible processors: (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR5
• Bus Clock: 5600 MHz (OC), 4800 MHz, 6666 MHz (OC)
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC4080
• Compatibility standards: High Definition Audio
LAN
• Network controller: Intel I225-V
• Network connections: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16 (x16/x8 mode), 1 x PCIe 5.0 x16 (x0/x8 mode), 1 x PCIe 3.0 x16 (x4 mode)
• Memory connections: SATA connectors: 4 x SATA - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 3.0 - connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, ASMedia ASM1061: SATA connectors: 2 x SATA
• RAID features: Intel Smart Response Technology
• Connections: 1 x HDMI, 1 x DisplayPort, 5 x USB 3.2 Gen 2, 4 x USB 2.0, 1 x LAN (2.5Gigabit Ethernet), 1 x USB-C Gen2x2, 1 x audio line output, 1 x microphone, 1 x audio line-out (center/subwoofer), 1 x audio line-out (rear), 1 x audio line-in, 1 x TOSLINK
• Internal connections: 4 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x USB-C Gen2, 1 x audio
• Power connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
Characteristics
• BIOS features: MSI ClickBIOS 5
• Hardware features: Supports AMD CrossFireX technology, 8 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost , MSI Audio Boost 5, 18+1+1 Phase Power Design, Surface Mount Technology (SMT)
Change
• Included accessories: Case label, cable labels, screwdriver, 1-2 RGB LED extension Y cables, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable, USB drive, Wi-Fi antenna, cleaning brush, MPG stickers, 2 x M.2 clips
• Included cables: 2 x SATA cable
• Width: 30.5 cm
• Depth: 24.4 cm
