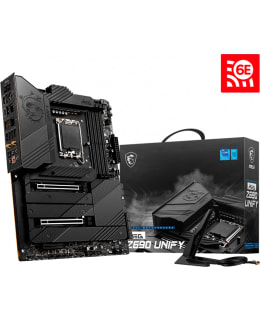

MSI MEG Z690 UNIFY - Motherboard - ATX - LGA1700 socket - Z690 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - Wi-Fi, Bluetooth, 2 x 2.5 Gigabit LAN - HD Audio (8-channel )
General
• Product type: Motherboard - ATX
• Chipset type: Intel Z690
• CPU base: LGA1700 base
• Maximum number of processors: 1
• Compatible processors: (supports 12th generation Intel Core / Pentium Gold / Celeron)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR5
• Bus Clock: 5000 MHz (OC), 5200 MHz (OC), 5400 MHz (OC), 5600 MHz (OC), 5800 MHz (OC), 5066 MHz (OC), 5333 MHz (OC), 6000 MHz (OC ), 4800 MHz, 6200 MHz (OC), 6400 MHz (OC), 6666 MHz (OC), 6133 MHz (OC), 6600 MHz (OC)
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC4080
• Compatibility standards: High Definition Audio
LAN
• Network controller: 2 x Intel I225-V
• Network connections: 802.11a/b/g/n/ac/ax, Bluetooth 5.2, 2 x 2.5 Gigabit Ethernet
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes), 1 x PCIe 3.0 x16 (x4 mode)
• Memory connections: SATA connectors: 4 x SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, ASMedia ASM1061: SATA connectors: 2 x SATA, PCIe 4.0 connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 3.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
• RAID features: Intel Smart Response Technology
• Connections: 1 x PS/2 keyboard / mouse, 7 x USB 3.2 Gen 2, 2 x USB 2.0, 2 x LAN (2.5Gigabit Ethernet), 1 x USB-C Gen2x2, 1 x audio line output, 1 x microphone, 1 x audio line-out (center/subwoofer), 1 x audio line-out (rear), 1 x audio line-in, 1 x TOSLINK
• Internal connections: 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x USB-C Gen 2x2, 1 x audio
• Power connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
Characteristics
• BIOS features: MSI ClickBIOS 5
• Hardware features: NVIDIA SLI Technology Support, V-Check Points, supports AMD CrossFireX technology, 8 Layer PCB, Clear CMOS Button, Debug LED, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, 2oz Copper PCB, M. 2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI Audio Boost 5, 19+2 Phase Power Design
Change
• Included accessories: Case label, cable labels, 2 x M.2 screw, 2 thermistor cables, screwdriver, 2 brackets for M.2 plug, 1-2 RGB LED extension Y cables, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable, DIY bracket kit, USB drive, cleaning brush, tuning controller, MEG stickers, 2 M.2 brackets, EZ front panel cable
• Included cables: 4 x SATA cable
• Compliance standards: FIPS, FISMA
• Width: 30.5 cm
• Depth: 24.4 cm
