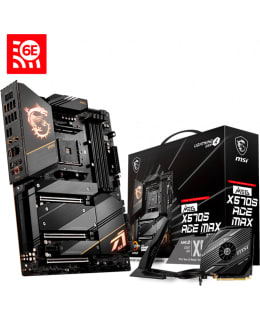

MSI MEG X570S ACE MAX - Motherboard - ATX - AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - HD Audio ( 8-channel)
General
• Product type: Motherboard - ATX
• Chipset type: AMD X570 / Nuvoton NCT6687D
• Processor base: AM4
• Maximum number of processors: 1
• Compatible processors: Ryzen (supports: Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR4
• Bus Clock: 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (OC), 3733 MHz (OC), 3600 MHz (OC), 3866 MHz (OC), 4000 MHz (OC), 4133 MHz (OC), 4400 MHz (OC), 4266 MHz (OC), 4600 MHz (OC), 4533 MHz (OC), 3200 MHz, 3066 MHz, 4733 MHz (OC), 4866 MHz ( OC), 5000 MHz (OC), 5200 MHz (OC), 5100 MHz (OC), 5300 MHz (OC)
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual channel memory architecture, A-XMP support
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC4082 / ESS ES9218PQ
• Compatibility standards: High Definition Audio
LAN
• Network controller: Realtek RTL8125B / Intel AX210
• Network connections: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 2 x PCIe 4.0 x16 (x0/x16, x8/x8 modes (with AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 2000 Series ); x0/x8 mode (with AMD Ryzen 2000 G-Series / 3000 G-Series)), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
• Memory connections: SATA connectors: 8 x SATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 connectors: 3 x M.2, PCIe 4.0 connectors: 1 x M.2
• Connections: 1 x audio line input, 1 x audio line output, 1 x microphone, 1 x TOSLINK, 4 x USB 3.2 Gen 1, 3 x USB 3.2 Gen 2, 1 x audio line-out (center/subwoofer), 1 x audio line- out (rear), 1 x LAN (2.5Gigabit Ethernet), 1 x USB-C Gen2x2, 4 x USB 2.0
• Internal connections: 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x USB-C Gen2, 1 x audio
• Power connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors
Characteristics
• BIOS features: MSI ClickBIOS 5
• Hardware monitoring: CPU core temperature, chassis temperature, CPU fan speed meter, case fan speed meter, fan controller
• Hardware features: NVIDIA SLI Technology Support, supports AMD CrossFireX technology, Clear CMOS Button, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, 2oz Copper PCB, pre-mounted I/O shield, MSI Core Boost, double-sided M.2 Shield FROZR, MSI Audio Boost 5 HD, 16+2+1 Phase Power Design
Change
• Included accessories: Case label, cable labels, 2 thermistor cables, 4 M.2 screws, screwdriver, 1-2 RGB LED extension Y cables, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable, MSI M.2 Xpander- Z Gen4 S card, USB drive, 4 slots for M.2 plug, MEG stickers
• Included cables: 4 x SATA cable
• Included software: Drivers and utilities
• Width: 30.5 cm
• Depth: 24.4 cm
