General

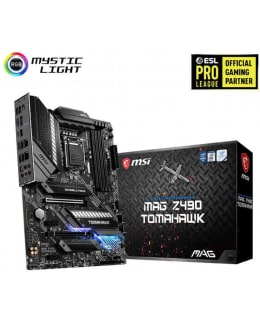

• Product type: Motherboard - ATX
• Chipset type: Intel Z490
• CPU base: LGA1200
• Maximum number of processors: 1
• Compatible processors: Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports: 10th generation Intel Core / Pentium Gold / Celeron)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR4
• Bus Clock: 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (OC), 4400 MHz (OC), 4266 MHz (OC), 4800 MHz (OC)
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC1200-VD1
• Compatibility standards: High Definition Audio
LAN
• Network controller: Intel I219V / Realtek RTL8125B-CG
• Network connections: Gigabit Ethernet, 2.5 Gigabit Ethernet
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode)
• Memory connections: SATA connectors: 6 x SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 3.0 connectors: 2 x M.2 - RAID 0 / RAID 1
• Connections: 1 x HDMI, 1 x LAN (Gigabit Ethernet), 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x PS/2 keyboard / mouse, 1 x DisplayPort, 1 x USB-C Gen2x2, 1 x audio line-out, 1 x microphone, 1 x audio line-out (center/subwoofer), 1 x audio line-out (rear), 1 x audio line-in, 1 x LAN (2.5Gigabit Ethernet), 1 x TOSLINK 1 x USB 3.2 Gen 2
• Internal connections: 4 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x USB-C Gen 1, 1 x audio, 1 x serial
• Power connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Characteristics
• BIOS features: MSI ClickBIOS 5
• Hardware features: Supports AMD CrossFireX technology, MSI Audio Boost, 6 Layer PCB, Turbo M.2, MSI Mystic Light, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, 12+1+ 1 Phase Power Design, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot, Extended Heatsink Design
Change
• Included accessories: Case label
• Included cables: 2 x SATA cable
• Included software: Drivers and utilities
• Width: 30.5 cm
• Depth: 24.4 cm
