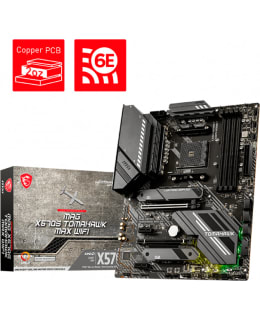

MSI MAG X570S TOMAHAWK MAX WIFI - Motherboard - ATX - AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi, Bluetooth - Onboard graphics (CPU required) - HD Audio (8-channel)
General
• Product type: Motherboard - ATX
• Chipset type: AMD X570
• Processor base: AM4
• Maximum number of processors: 1
• Compatible processors: Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR4
• Bus Clock: 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3600 MHz (OC), 3866 MHz (OC), 4000 MHz (OC), 3200 MHz, 5100 MHz (OC )
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual channel memory architecture, A-XMP support
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC4080
• Compatibility standards: High Definition Audio
LAN
• Network controller: Realtek RTL8125B / Intel AX210
• Network connections: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs)), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1
• Memory connections: SATA connectors: 6 x SATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 connectors: 2 x M.2
• Connections: 1 x LAN (2.5Gigabit Ethernet), 1 x audio line-in, 1 x audio line-out, 1 x microphone, 1 x TOSLINK, 2 x USB 3.2 Gen 1, 3 x USB 3.2 Gen 2, 1 x audio line- out (center/subwoofer), 1 x audio line-out (rear), 1 x USB-C Gen2, 1 x PS/2 keyboard / mouse, 2 x USB 2.0, 1 x HDMI
• Internal connections: 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x serial, 1 x USB-C Gen2, 1 x audio
• Power connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Characteristics
• BIOS features: MSI ClickBIOS 5
• Hardware features: 12+2 Phase Power Design, supports AMD CrossFireX technology, 6 Layer PCB, MSI Mystic Light, Game Boost, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Audio Boost 5
Change
• Included accessories: Case label, 3 x M.2 screws, 3 holders for M.2 plug, USB drive, Wi-Fi antenna, MAG stickers
• Included cables: 2 x SATA cable
• Included software: Drivers and utilities
• Width: 30.5 cm
• Depth: 24.4 cm
