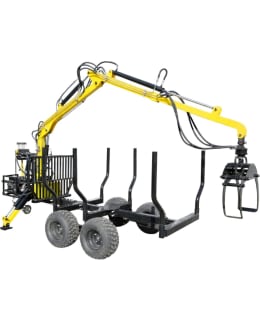

Komator's hydraulic log truck is designed for efficient and demanding forestry work. The cart is equipped with its own high-quality hydraulics, a powerful loader and a drive axle, which significantly improves forward mobility in challenging terrain.
The delivery includes everything you need to get ready for use: a log cart, a hydraulic loader with 180° swiveling grapple, an extension boom, sturdy hydraulic support legs, six banks and a powerful 6.5 HP four-stroke engine.
The traction axle makes it easy to maneuver over soft terrain, snow and slopes and reduces stress on the tow vehicle.
Excellent for use behind an ATV. Supplied in a sturdy steel frame.
Product Features- Ammattractive log truck with high ground clearance
- Rigid, fully galvanized, corrosion-resistant frame
- Hydraulic drive axle (auxiliary drive for wheels)
- Dedicated hydraulic system and easy-to-use control levers
- Hydraulic outriggers with wide and stable support
- Powerful loader with extension boom
- 180° swivelling and tilting grapple
- Traction head for 50 mm ball
- Solid front boom
- 6 pcs. side booms
- Note: Motor and hydraulic oils not included
Specifications- Motor: Ducar 6.5 HP four stroke, electric start
- Fuel tank: 4 l
- Hydraulic oil tank: 12 l
- Maximum boom reach: 430 cm
- Maximum lift height: 460 cm
- Maximum width of support legs: 250 cm
- Lifting capacity at 2 m: 500 kg
- Lifting capacity in extreme position: 200 kg
- Maximum trolley capacity: 2000 kg
- Tyres: 23 x 8.5-12
- Pump capacity: 2.7 mL/R
- Working pressure: 16 MPa
- Size: 230 x 120 x 74 cm
- Gross weight: 1050 kg
- Net weight: 950 kg
- Delivered unassembled in transport frame
- Warranty: 1 year
