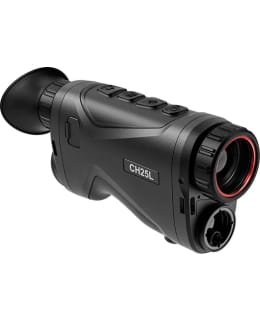

HIKMICRO CONDOR CH25L LÄMPÖKAMERA Main Image

Hikmicro Condor CH25L thermal imaging camera

Name: Hikmicro Condor CH25L thermal imaging camera
Brand: Hikmicro
SKU: P1694789362607206
Price: 1979 EUR
Availability: OutOfStock

0.0

€1,979.00

or from/ month

Out of stock for online purchase

We can remind you when this item will be back in stock

Shipping starting from €4.80

The produt is only available online

Returns

Free returns for 30 days after purchase

Fast delivery

Fast and versatile delivery options

100% Safe

Safe Finnish online store

Samankaltaisia tuotteita

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

About the product

The CH25L thermal imaging camera is equipped with a 384×288 @12 um thermal cell and a laser rangefinder. The high thermal sensitivity of less than 20 mK NETD ensures perfect image quality, guaranteeing the identification of details even in the most difficult weather conditions. Its 1000 m laser rangefinder can accurately measure distance even in low light conditions.

Temperature sensor resolution: 384×288, 12 μm
Radius: 25 mm
Magnification: 2.5×-20.0× (8×)
Field of view: 10.5° × 7.9°
Display resolution: 0.39", 1024×768 OLED
Detection range: 1200 m
Battery life: 4.5 hours
All HIKMICRO devices feature image and video recording, IP67 rating, Wi-Fi and English language menus.

The HIKMICRO devices can be connected to your mobile phone via the Hikmicro SIGHT app which works on Android and Apple (iOS) phones. You can view the thermal viewer on your phone screen, control its settings and save videos and pictures to send to your friends.

Specifications

Heat module

Image cell: VOx-uncooled level-fuel matrix
Maximum resolution: 384 × 288
Image frequency: 50 Hz
Pulse interval: 12 μm
Wavelength range of response: 8 μm - 14 μm
NETD: Less than 20 mK (@25 °C, F#=1.0)
Lens (focal length): 25 mm, f1.0
Focal mode: Focus ring
Detection distance: 1200 m
Lowest focusing distance: 2.5 m
Focus: 2.5× - 20.0× (8×)
Image angle (H × V, degrees/m @100 m): 10.5° × 7.9° / 18.3 m × 13.8 m @ 100 m

Image display.

Display: 1024 × 768, 0.39-inch OLED
Palettes: Blackbody, Whitebody, Redbody, Combination
FFC (Flat Field Correction): Automatic, Manual, External correction
Output bubble: 4 mm
Eyesthetic distance: 15 mm
Diopteri (range): -5D - +3D
Dawn adjustment: Yes
Tone control: Cold, Warm
Contrast Control: Yes
Image Pro: Yes
Zoom Pro: Yes

System

Video recording: Yes
Capture: Yes
Screen capture: Yes
Standby: Yes
Save Mode: Yes
PIP (image shown): Yes
Hotspot: Yes
Target tracking: Yes
Distance measurement: Yes

Power supply

Battery type: Replaceable and rechargeable lithium-ion battery
Long battery life: 4.5 hours of continuous use without CVBS and hotspot (@25°C)
Type-C power supply: 5 VDC, 2 A
Support: External Power Supply

General Information

Protective classification: IP67
Material: 180.7 mm × 52.7 mm × 85.4 mm (7.11" × 2.07" × 3.36")
Weight: 386 g without battery
Availing temperature: -30 °C to 55 °C

Laser rangefinder

Laser safety class: Class 1
Wavelength: 905 nm
Maximum measurement distance: 1000 m
Measurement accuracy: ±1 m

Minimum measurement distance: 10 m
