Helix IK S8-DVC2 8" subwoofer

- Low-profile 8″ subwoofer
- 600W
- 2 x 2 Ohm
- Superb sound quality

0.0

Helix IK S8-DVC2 8" subwoofer

Name: Helix IK S8-DVC2 8" subwoofer
Brand: Helix
SKU: P1694789359059823
Price: 159 EUR
Availability: InStock

0.0

- Low-profile 8″ subwoofer
- 600W
- 2 x 2 Ohm
- Superb sound quality

€159.00

or from/ month

Dropship, available over 20 pcs

Shipping starting from €4.80

Shipped approx. 8.19.2025.

The produt is only available online

Returns

Free returns for 30 days after purchase

Fast delivery

Fast and versatile delivery options

100% Safe

Safe Finnish online store

Samankaltaisia tuotteita

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

Lorem ipsum dolor sit amet, consectetur

3.5

15050

About the product

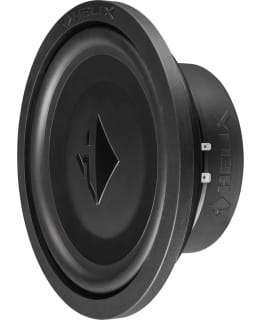

The Helix IK S8 is a very high quality low-profile subwoofer that works in a small enclosure and comes with a protective grille.

This element has a mounting depth of only 79.5 mm, so it can be installed in a very shallow enclosure.

Helix IK series subwoofers work in small enclosures. Both in reflex and sealed enclosures. Affordable elements available with 2×2 Ohm and 1x2 Ohm voice coils. The IK series elements offer very good sound quality in a small enclosure.

Power handling RMS / max.    P    300 / 600 Watts

Impedance     Z    2 x 2 Ω

DC resistance     Re   2 x 1.8 Ω

Resonance frequency     Fs   43 Hz

Mechanical Q factor     Qms    4.79

Electrical Q factor     Qes    0.57

Total Q factor    Qts    0.51

Compliance    Cms   160 μm/N

Equivalent air volume    Vas    11 L

Force factor     B*I    11.9 Tm

Sensitivity     SPL   88.0 dB @ 2.83V / 1m

85.0 dB @ 1W / 1m

Cone area    Sd   222 cm²

Moving mass    Mms    82 g

Cone material      Sandwich paper cone

Mechanical resistance    Rms    4.7 kg/s

Voice coil diameter    ø   50.8 mm

Voice coil winding height      19 mm

Max. linear excursion     Xmax    +/- 6,0 mm

Outer diameter    ø   213 mm / 8.40″

Installation diameter    ø   180.4 mm / 7.10″

Installation depth      79.5 mm / 3.13″



Recommended enclosure volumes

Sealed box

Net volume        10 L

Lower limiting frequency (-3dB)       46 Hz

Recommended DSP settings        Recommended ″self-define″ highpass filter with 46 Hz cut-off frequency and Q = 1.5

additional EQ filter 100 Hz / Q = 1.0 / -2.5 dB



Vented box

Net volume      10 L

Port diameter    ø   60 mm / 2.36″

Port area      28 cm²

Port length       42 cm / 16.5″ (angled port)

Port tuning frequency    Fb    39 Hz

Lower limiting frequency (-3dB)        45 Hz

Recommended DSP settings       Recommended ″self-define″ highpass filter with 40 Hz cut-off frequency and Q = 1.2

additional EQ filter 100 Hz / Q = 0.9 / -2 dB

Scope of delivery

1 x HELIX IK S8-DVC2 subwoofer

1x Grille

1 x Gasket

1x Connecting terminal

1 x Data sheet
