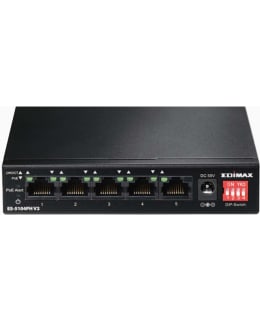

The Edimax ES-5104PH V2 is a five-port Fast Ethernet switch with four PoE+ ports designed for use in home, small or medium-sized network environments. With four DIP switches, PoE ports can be set manually with on/off control, which extends the PoE delivery distance up to 200 meters, and also supports port-based on/off control for VLAN and QoS. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras, and IP phones, as well as other Ethernet-enabled devices such as computers, printers, or network attached storage (NAS). The compact size and fanless design make the switch an ideal solution for expanding home and small business networks.
Power over Ethernet (PoE+) automatic detection
Includes four IEEE 802.3at Power over Ethernet (PoE+) ports that deliver up to 30 watts of power per port. It can convert standard 100-240V AC power to low-voltage 50-57V DC power to power IEEE 802.3-compliant network peripherals over existing LAN cables. With the PoE detection feature, the ES-5104PH V2 can check whether the connected device is IEEE 802.3at compliant. If the PoE device is not recognized, only network data is transferred via the LAN cable. This means that it is easy to set up and manage network devices such as access points and webcams.
CCTV mode
The unique CCTV mode DIP switch function is ideal for surveillance network environment. Turning on all DIP switches enables CCTV mode, which provides multi-functional PoE + data expansion, port isolation and QoS on the ES-5104PH V2. When using video surveillance systems in homes, businesses or institutions, CCTV mode offers better speeds for multicast viewing and easier installation. Setting all DIP switches back to off will quickly turn the ES-5104PH V2 back to normal for general purpose communication.
Power and data range extension
A built-in DIP switch provides extended operating modes for switches 1 and 2. The ES-5104PH V2 functions as a "regular" IEEE 802.at/af PoE switch when the DIP switches are off. When the switches are on, the ES-5104PH V2 operates at 10Mbps bi-directional per port, but supports 30W PoE power up to 200m, surpassing the 100m limit of Ethernet UTP cables. With this brand new feature, the ES-5104PH V2 provides an additional solution to extend the 802.3at/af PoE distance and save the cost of installing an Ethernet cable.
Innovative port-based VLAN capabilities
The ES-5104PH V2 has a port-based VLAN where ports can be isolated from each other via DIP switch port 3. This can help prevent IP camera multicast or broadcast storms from affecting each other.
Hardware QoS for video and voice traffic priorities
Supports 802.1p QoS via DIP switch port 4. This ensures the priority of video and voice traffic.
One Uplink port
The ES-5104PH V2 has one uplink port with a transmission speed of 100 Mbps, which ensures fast data and video transmission and reliable connections between surveillance systems and the external network, where four PoE+ ports can be fully used.
High performance
The ES-5104PH switch also supports auto-negotiation and blocking wire speed to give you maximum speed and best possible performance for every device connected to your network.
Plug & Play, no installation required
Only connect Ethernet or PoE compatible devices to the switch. Data and power can be transferred over existing standard Cat-5e Ethernet cables without additional cabling or configuration. ES-5104PH V2 reduces the difficulty, time and cost of network installation.
Flexible network deployment and energy efficient
A fast and efficient solution when your network devices are not available in the socket. The switch also supports IEEE 802.3az Energy Efficient Ethernet, which enables lower power consumption and lower costs during low data transmission.
Without fan Silent and compact design
The fanless design ensures quiet operation and enables an even more compact structure that keeps valuable desk space free in a home or small office environment.
Characteristics
• Five 10/100 Mbps Fast Ethernet ports and four PoE+ ports
• IEEE 802.3af/at PoE compatible (ports 1 to 4) for easier commissioning and installation
• Up to 30 W per PoE port (total power budget: 60 W) for powering PoE-compatible devices
• Automatic detection of power-driven devices (PD) and power consumption levels
• Hardware DIP switch for selecting “Standard” and “Extend” mode; In "Extend" mode, 30 watt PoE transmission distance is 200 m at 10 Mbps
• Port-based VLAN and Loop Protection features
• Supports 802.1p Quality of Service (QoS)
• Plug & play, no installation required and silent operation without fan
• External power supply included (55V, 1.3A)
