Reliable power protection and performance in a compact design

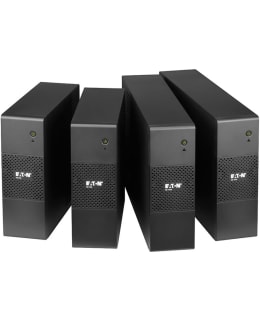

The Eaton 5S 550i is a versatile UPS based on line-interactive technology, designed to provide effective protection for workstations, POS devices, and network equipment. Its automatic voltage regulation (AVR) corrects power grid fluctuations without using battery power, which significantly extends battery life. The device’s compact tower design allows it to be placed even in tight spaces, such as under a monitor. Thanks to its USB interface, the UPS integrates seamlessly with the most common operating systems, providing automatic management and a safe shutdown in the event of a power outage.
Key Features
Automatic Voltage Regulation (AVR) conserves battery power and ensures a steady current
HID-compatible USB port enables easy integration into Windows, Mac, and Linux environments
Thanks to integrated communication line protection, network lines (RJ45/RJ11) are also protected against overvoltage
User-replaceable battery extends the device’s service life
Technical Specifications
UPS Technology: Line-interactive (AVR)
Power: 550 VA / 330 W
Input Connection: 1 x IEC-C14
Output Connections: 4 x IEC-C13 (3 protected, 1 surge-protected only)
Voltage regulation: Automatic (AVR) Booster + Fader
Management interface: USB port (HID-compatible)
Dimensions (H x W x D): 250 x 87 x 260 mm
Weight: 4.96 kg
