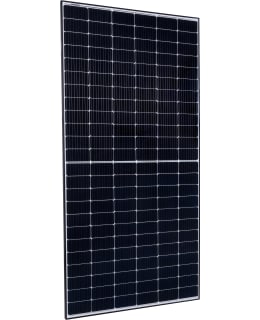

The BrightSolar 450 W half cut solar panel is an efficient and stylish black solar panel.
The Half Cut single crystal solar panel produces electricity more efficiently and with better efficiency than traditional panels. As an added advantage, better electricity production even with low solar radiation and hot weather, as the halved cells produce less waste heat and more electricity.
Certified to withstand challenging environmental conditions: - 130 km/h wind load (2400 Pa)
- 900 kg snow load per module (5400 Pa)
- 25 mm hail at 23 m/s
- Resists sand and dust abrasion
Technical information: - Power: 450 Wp
- Power tolerance: 5%
- Open circuit voltage: 50.27V
- System voltage (max): 1500 V
- Maximum power point voltage (VMP): 41.83 V
- Maximum power point current (Imp): 10.76 A
- Module efficiency factor: 20.70%
- Short circuit current (ISC): 11.46A
- Number of cells: 144
- Cell type: Single crystal
- Frame color: Black
- Cables: 4.0 mm² x 300 mm, Junction box IP68
- Connectors: MC4
- Dimensions (H x W x D): 2094 x 1038 x 30 mm
- Weight: 22.5 kg
- Package dimensions (L x H x D): 2094 x 1038 x 30 mm
- Package weight: 23 kg
- On stage: 78 pcs
- IEC 61215:2016. IEC 61730-1:2:2016
- ISO9001:2015 • ISO14001:2015
- The product has a 10-year quality guarantee / 30-year linear performance guarantee up to 80%
