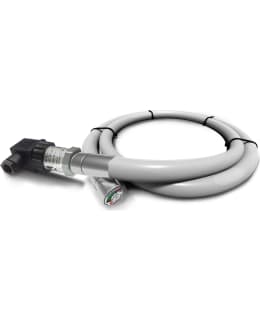

The Blazecut T series is an automatic extinguishing system that operates in a protected area without supervision or other equipment. You simply install the Blazecut extinguishing hose around the danger area. If you want to protect, for example, the engine compartment of a car or boat with a flexible hose. When a fire starts, the temperature rises significantly in the protected space and the pressure inside the Blazecut hose increases by approx. 20 bar. When the temperature of the flames rises above +120 °C, the surface of the hose melts and the gas is released under high pressure at the point where the fire temperature is the highest and extinguishes the fire immediately. The gas itself leaves no residue and is safe for both people and the environment.
BlazeCut T series products use liquefied gas, HFC-227ea extinguishing agent. Extinguisher is
worldwide known and accepted pure gaseous substance used in large extinguishing systems.
The extinguishing gas is effective and at the same time safe for people and the structures to be protected. That's why the fire extinguisher gas in question has also been chosen as the propellant for the Blazecut T series.
System operation:
The Blazecut T series is an automatic extinguishing system that works in a closed space without supervision or other devices. When a fire starts, the temperature rises significantly in the protected space and the pressure inside the Blazecut hose increases by approx. 20 bar. When the temperature of the flames rises above +120 °C, the surface of the hose melts and the gas is released under high pressure at the point where the fire temperature is the highest and extinguishes the fire immediately. The gas itself leaves no residue and is safe for both people and the environment.
Product information:
Does not conduct electricity
Does not cause corrosion
Withstands temperature fluctuations
Leaves no visible residue
Does not damage other devices
Does not damage the ozone layer
HFC-227ea (FM-200), GWP=3220
length 429 cm
weight 1.74 kg
extinguishing agent HFC-227ea, quantity 1000g
includes a pressure switch
max. extinguishing volume 1.82 m3 electrical fire
max. extinguishing volume 1.39 m3 engine fire
min. bending radius 16cm
Markings in cargo transport documents: UN3296, H280, CAS 431-89-0
Typical applications
Engine compartments in different types of road transport vehicles, e.g. h-cars, k-cars, vans, SUVs, Motorhomes
Work machines, forklifts, tractors, excavators, agricultural machines, cranes, ATVs, snowmobiles, water jets
Power stations, generators, fuse boxes, battery boxes, other housings and cabinets containing electrical equipment.
IT servers, telecommunications cabinets, vending machines, ATMs, slot machines.
3D printers, laser cutters, AV equipment
